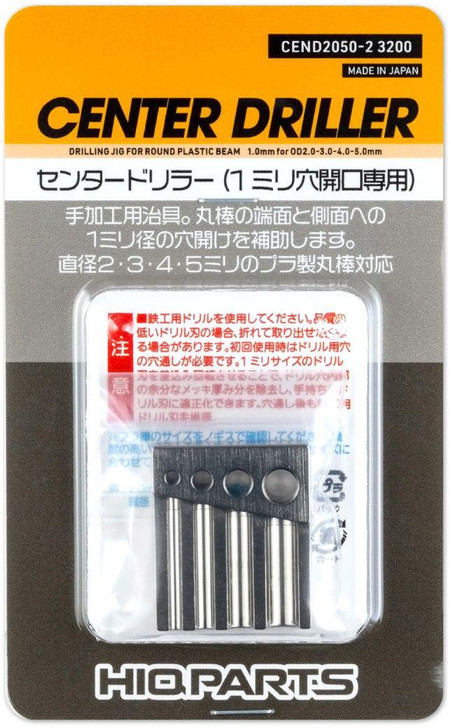

- Hand processing jig.
- Assists in drilling 1mm diameter holes on the ends and sides of round rods.
- Compatible with plastic round rods with diameters of 2, 3, 4, and 5mm.
- Jig for drilling straight holes into the core (end face) and side of plastic round rods.
- Exclusively for 1mm diameter drill bits.
- For holes smaller than 1mm, use a drill bit with a 1mm shank and a smaller diameter tip (ensure the blade length is at least 18mm for core and end face processing).
- Ensure that the plastic rods are adjusted to the specified size for high precision processing.
- Example: When using a 2.0mm hole, suitable for 2.00–2.05mm.
- Initial use requires threading a hole for the drill bit.
- Insert a 1mm size drill to remove excess plating thickness inside the drill hole.
- Always use the specified size drill bit. Using incorrect sizes may damage the inner wall, reduce precision, or cause the bit to get stuck.
- Please note that there may be minor surface scratches that do not affect usage.
Product Specifications:
- Size: W25mm x D30mm x H8mm
- Material: Brass (nickel-plated)
- Compatible materials: Plastic
- Country of manufacture: Japan
- From mid-September 2019 shipments onward, the design has been changed, with no functional impact. The lane appears slanted when viewed from the front on the 2019-September model.
- Additionally, there is a size change: D33mm →D30mm
- Package Size/Weight: 13.4 x 7.3 x 1.9 cm / 39g
