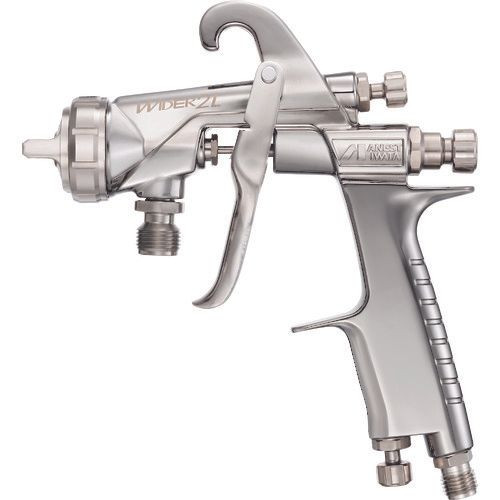

Anest Iwata WIDER2L-14G2P Pressure Feed Spray Gun 1.4 mm Nozzle

Features
In pursuit of ergonomic design, weight reduction has been achieved.
Improved maintainability.
A pattern adjustment device that responds linearly.
Stability is improved with the air valve seat set with little individual difference.
Twilight chrome plating is applied to the main unit as in the previous models (LPH-101, LPH-200).

Usage
For large parts such as large parts and vehicles, for line painting
Product specifications
Specifications / standards
Pumping type
Cup mounting opening: G3 / 4
Air intake: G1 / 4
Nozzle diameter (mm): 1.4
Air consumption (L / min): 470
Required compressor (kW): 2.2 to 3.7
Pattern opening (mm): 300
Atomization stage: high fines
Air mounting port: G1 / 4
Material
Body: Aluminum die casting
Liquid contact part: stainless steel
Mass / mass unit
375g
